OmniSketch::Sketch::SketchBase< key_len, T > Class Template Reference

Base sketch. More...

#include <sketch.h>

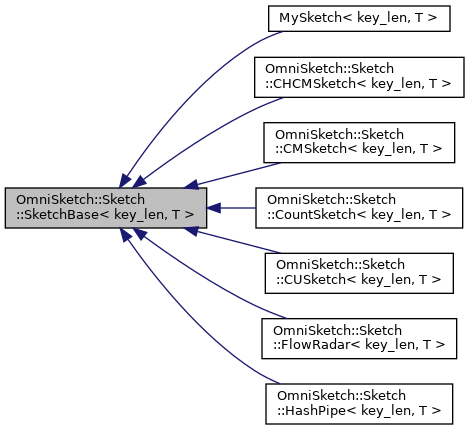

Inheritance diagram for OmniSketch::Sketch::SketchBase< key_len, T >:

Public Member Functions
virtual size_t	size () const
	Return the size of the sketch. More...
virtual void	insert (const FlowKey< key_len > &flowkey)
	Insert a flowkey without value. More...
virtual void	update (const FlowKey< key_len > &flowkey, T value)
	Update a flowkey with certain value. More...
virtual T	query (const FlowKey< key_len > &flowkey) const
	Query the sketch for the estimated size of a flowkey. More...
virtual bool	lookup (const FlowKey< key_len > &flowkey) const
	Look up a flowkey in the sketch. More...
virtual Data::Estimation< key_len, T >	getHeavyHitter (double threshold) const
	Get all the heavy hitters. More...
virtual Data::Estimation< key_len, T >	getHeavyChanger (std::unique_ptr< SketchBase< key_len, T >> &ptr_sketch, double threshold) const
	Get all the heavy changers. More...
virtual Data::Estimation< key_len, T >	decode ()
	Decode all flowkeys along with their values. More...

Detailed Description

template<int32_t key_len, typename T = int64_t>
class OmniSketch::Sketch::SketchBase< key_len, T >

Base sketch.

This class is provided for the sake of testing. By virtue of polymorphism, testing class is able to call overriden methods in subclasses. Thus, it is suggested that you put override specifier at your overriden method in the derived class (cf. files in sketch/ folder). If the signature mismatches, Test::TestBase may complain by prompting an error.

Template Parameters

T	type of the counter
key_len	length of flowkey

Attention

Write your method in subclass with the same signature if it is functionally equivalent to one of the following:

Functional Description	Partial Signature (Click the links to see more)
query sketch size	size() const
insert flowkey without value	insert(const FlowKey<key_len> &)
insert flowkey with value	update(const FlowKey<key_len> &, T)
look up a flowkey (if exists)	lookup(const FlowKey<key_len> &) const
heavy hitter	getHeavyHitter(double) const
heavy changer	getHeavyChanger(std::unique_ptr<SketchBase<key_len,T>> &, double) const
decode flowkeys with values	decode()

Member Function Documentation

decode()

template<int32_t key_len, typename T = int64_t>

virtual Data::Estimation<key_len, T> OmniSketch::Sketch::SketchBase< key_len, T >::decode ( )

inlinevirtual

Decode all flowkeys along with their values.

Returns

An Estimation that contains all decoded flowkeys with estimated value. Particularly useful for reversible sketches.

Reimplemented in OmniSketch::Sketch::FlowRadar< key_len, T, hash_t >, and MySketch< key_len, T >.

getHeavyChanger()

template<int32_t key_len, typename T = int64_t>

virtual Data::Estimation<key_len, T> OmniSketch::Sketch::SketchBase< key_len, T >::getHeavyChanger ( std::unique_ptr< SketchBase< key_len, T >> &  ptr_sketch, double  threshold  ) const

inlinevirtual

Get all the heavy changers.

Returns

See Data::Estimation for more info.

Reimplemented in MySketch< key_len, T >.

getHeavyHitter()

template<int32_t key_len, typename T = int64_t>

virtual Data::Estimation<key_len, T> OmniSketch::Sketch::SketchBase< key_len, T >::getHeavyHitter ( double  threshold ) const

inlinevirtual

Get all the heavy hitters.

Returns

See Data::Estimation for more info.

Reimplemented in OmniSketch::Sketch::HashPipe< key_len, T, hash_t >, and MySketch< key_len, T >.

insert()

template<int32_t key_len, typename T = int64_t>

virtual void OmniSketch::Sketch::SketchBase< key_len, T >::insert ( const FlowKey< key_len > &  flowkey )

inlinevirtual

Insert a flowkey without value.

Reimplemented in MySketch< key_len, T >, OmniSketch::Sketch::BloomFilter< key_len, hash_t >, OmniSketch::Sketch::BloomFilter< key_len, Hash::AwareHash >, and OmniSketch::Sketch::CountingBloomFilter< key_len, hash_t >.

lookup()

template<int32_t key_len, typename T = int64_t>

virtual bool OmniSketch::Sketch::SketchBase< key_len, T >::lookup ( const FlowKey< key_len > &  flowkey ) const

inlinevirtual

Look up a flowkey in the sketch.

Returns

true means there exists; false otherwise.

Reimplemented in MySketch< key_len, T >, OmniSketch::Sketch::BloomFilter< key_len, hash_t >, OmniSketch::Sketch::BloomFilter< key_len, Hash::AwareHash >, and OmniSketch::Sketch::CountingBloomFilter< key_len, hash_t >.

query()

template<int32_t key_len, typename T = int64_t>

virtual T OmniSketch::Sketch::SketchBase< key_len, T >::query ( const FlowKey< key_len > &  flowkey ) const

inlinevirtual

Query the sketch for the estimated size of a flowkey.

Reimplemented in MySketch< key_len, T >, OmniSketch::Sketch::CHCMSketch< key_len, no_layer, T, hash_t >, OmniSketch::Sketch::HashPipe< key_len, T, hash_t >, OmniSketch::Sketch::CUSketch< key_len, T, hash_t >, OmniSketch::Sketch::CMSketch< key_len, T, hash_t >, and OmniSketch::Sketch::CountSketch< key_len, T, hash_t >.

size()

template<int32_t key_len, typename T = int64_t>

virtual size_t OmniSketch::Sketch::SketchBase< key_len, T >::size ( ) const

inlinevirtual

Return the size of the sketch.

Reimplemented in OmniSketch::Sketch::FlowRadar< key_len, T, hash_t >, OmniSketch::Sketch::BloomFilter< key_len, Hash::AwareHash >, OmniSketch::Sketch::CHCMSketch< key_len, no_layer, T, hash_t >, OmniSketch::Sketch::HashPipe< key_len, T, hash_t >, OmniSketch::Sketch::CUSketch< key_len, T, hash_t >, OmniSketch::Sketch::CMSketch< key_len, T, hash_t >, OmniSketch::Sketch::CountSketch< key_len, T, hash_t >, and MySketch< key_len, T >.

update()

template<int32_t key_len, typename T = int64_t>

virtual void OmniSketch::Sketch::SketchBase< key_len, T >::update ( const FlowKey< key_len > &  flowkey, T  value  )

inlinevirtual

Update a flowkey with certain value.

Reimplemented in MySketch< key_len, T >, OmniSketch::Sketch::FlowRadar< key_len, T, hash_t >, OmniSketch::Sketch::CHCMSketch< key_len, no_layer, T, hash_t >, OmniSketch::Sketch::HashPipe< key_len, T, hash_t >, OmniSketch::Sketch::CUSketch< key_len, T, hash_t >, OmniSketch::Sketch::CMSketch< key_len, T, hash_t >, and OmniSketch::Sketch::CountSketch< key_len, T, hash_t >.
