Collection of metrics. More...

#include <test.h>

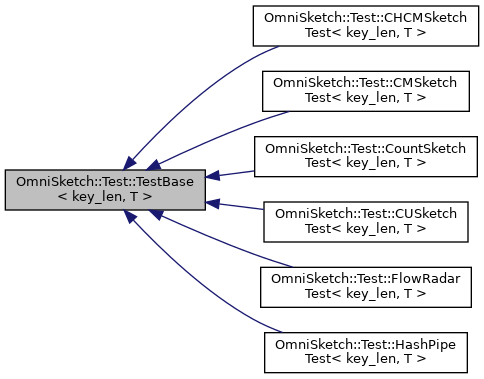

Inheritance diagram for OmniSketch::Test::TestBase< key_len, T >:

[legend]

Public Member Functions
	TestBase (const std::string_view show_name, const std::string_view config_file, const std::string_view test_path)
	Construct by specifying all necessary tables in config file. More...

virtual void	show () const final
	Display metrics in a human-readable manner. More...

virtual void	runTest ()
	Run the test and collect statistics. More...

virtual void	testSize (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch) final
	Get the size of the sketch. More...

virtual void	testInsert (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch, typename std::vector< Data::Record< key_len >>::const_iterator begin, typename std::vector< Data::Record< key_len >>::const_iterator end) final
	Insert a row of records. More...

virtual void	testUpdate (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch, typename std::vector< Data::Record< key_len >>::const_iterator begin, typename std::vector< Data::Record< key_len >>::const_iterator end, Data::CntMethod cnt_method) final
	Update a row of records (with values to the sketch) More...

virtual void	testQuery (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch, const Data::GndTruth< key_len, T > &gnd_truth) final
	Query for each flow in ground truth. More...

virtual void	testLookup (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch, const Data::GndTruth< key_len, T > &gnd_truth, const Data::GndTruth< key_len, T > &sample) final
	Lookup each flow in ground truth. More...

virtual void	testHeavyHitter (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch, double threshold, Data::GndTruth< key_len, T > gnd_truth_heavy_hitters) final
	Test heavy hitters. More...

virtual void	testHeavyChanger (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch_1, std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch_2, double threshold, Data::GndTruth< key_len, T > gnd_truth_heavy_changers) final
	Test heavy changers. More...

virtual void	testDecode (std::unique_ptr< Sketch::SketchBase< key_len, T >> &ptr_sketch, Data::GndTruth< key_len, T > gnd_truth) final
	Test decode. More...

Protected Attributes
const std::string_view	show_name

const std::string_view	config_file

const std::string_view	test_path

Detailed Description

template<int32_t key_len, typename T = int64_t>
class OmniSketch::Test::TestBase< key_len, T >

Collection of metrics.

Todo:: Docs for supported types of statistics

Template Parameters

key_len	length of flowkey
T	type of the counter

Test Routine	Required Overriden Function	Available Metrics (In Test::Metric)	Name of the Testing Routine in TOML
testSize()	size()	SIZE	None (Once calling testSize(), the metric is collected)
testInsert()	insert()	RATE	`insert`
testUpdate()	update()	RATE	`update`
testQuery()	query()	RATE, ARE, AAE, ACC, PODF, DIST	`query`
testLookup()	lookup()	RATE, TP, FP, PRC	`lookup`
testHeavyHitter()	getHeavyHitter()	TIME, ARE, PRC, RCL, F1	`heavyhitter`
testHeavyChanger()	getHeavyChanger()	TIME, ARE, PRC, RCL, F1	`heavychanger`
testDecode()	decode()	TIME, RATIO, ARE, AAE, ACC, PODF, DIST	`decode`

Constructor & Destructor Documentation

◆ TestBase()

template<int32_t key_len, typename T = int64_t>

OmniSketch::Test::TestBase< key_len, T >::TestBase	(	const std::string_view	show_name,
		const std::string_view	config_file,
		const std::string_view	test_path
	)

inline

Construct by specifying all necessary tables in config file.

Parameters

show_name	The name to be shown in the output (may contain whitespaces)
config_file	Path to the config file
test_path	Path to the node which stores the testing metrics (concatenated with '.', see example below)

Example

If the toml file is as follows,

# toml.toml
[MySketch]

   [MySketch.para]
   arg1 = 1
   arg2 = 2

   [MySketch.test]
   insert = ["RATE"]
   arg3 = 3

   [MySketch.data]
   data = "../record.bin"
   format = [["flowkey", "padding"], [13, 3]]

and you want the readable name "My Tiny Little Sketch" when showing results, then you should call constructor in this way:

TestBase<...>("My Tiny Little Sketch", "toml.toml", "MySketch.test");

Note

Except for show_name, all other strings should contain no whitespaces.

Member Function Documentation

◆ runTest()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::runTest

virtual

Run the test and collect statistics.

Make sure this method is overriden in subclass.

Reimplemented in OmniSketch::Test::CHCMSketchTest< key_len, no_layer, T, hash_t >, OmniSketch::Test::CUSketchTest< key_len, T, hash_t >, OmniSketch::Test::HashPipeTest< key_len, T, hash_t >, OmniSketch::Test::CMSketchTest< key_len, T, hash_t >, OmniSketch::Test::CountSketchTest< key_len, T, hash_t >, OmniSketch::Test::FlowRadarTest< key_len, T, hash_t >, OmniSketch::Test::BloomFilterTest< key_len, hash_t >, and OmniSketch::Test::CountingBloomFilterTest< key_len, hash_t >.

◆ show()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::show

finalvirtual

Display metrics in a human-readable manner.

Todo:: DIST

Todo:: DIST

◆ testDecode()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testDecode	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch,
		Data::GndTruth< key_len, T >	gnd_truth
	)

finalvirtual

Test decode.

You should override the Sketch::SketchBase::decode() method.

Parameters

ptr_sketch	pointer to the sketch
gnd_truth	ground truth

◆ testHeavyChanger()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testHeavyChanger	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch_1,
		std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch_2,
		double	threshold,
		Data::GndTruth< key_len, T >	gnd_truth_heavy_changers
	)

finalvirtual

Test heavy changers.

You should override the Sketch::SketchBase::getHeavyChangers() method.

Parameters

ptr_sketch_1	pointer to the first sketch
ptr_sketch_2	pointer to the second sketch
threshold	threshold value of heavy changers
gnd_truth_heavy_changers	ground truth of heavy changers (relative to the first sketch)

◆ testHeavyHitter()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testHeavyHitter	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch,
		double	threshold,
		Data::GndTruth< key_len, T >	gnd_truth_heavy_hitters
	)

finalvirtual

Test heavy hitters.

You should override the Sketch::SketchBase::getHeavyHitter() method.

Parameters

ptr_sketch	pointer to the sketch
threshold	threshold value of heavy hitters
gnd_truth_heavy_hitters	ground truth of heavy hitters

◆ testInsert()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testInsert	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch,
		typename std::vector< Data::Record< key_len >>::const_iterator	begin,
		typename std::vector< Data::Record< key_len >>::const_iterator	end
	)

finalvirtual

Insert a row of records.

Records in [begin, end) will be sequentially inserted. You should override the Sketch::SketchBase::insert() method.

Parameters

ptr_sketch	pointer to the sketch
begin	[begin, end)
end	[begin, end)

◆ testLookup()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testLookup	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch,
		const Data::GndTruth< key_len, T > &	gnd_truth,
		const Data::GndTruth< key_len, T > &	sample
	)

finalvirtual

Lookup each flow in ground truth.

You should override the Sketch::SketchBase::lookup() method.

Parameters

ptr_sketch	pointer to the sketch
gnd_truth	ground truth
sample	sampled ground truth

◆ testQuery()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testQuery	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch,
		const Data::GndTruth< key_len, T > &	gnd_truth
	)

finalvirtual

Query for each flow in ground truth.

You should override the Sketch::SketchBase::query() method.

Parameters

ptr_sketch	pointer to the sketch
gnd_truth	ground truth

◆ testSize()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testSize ( std::unique_ptr< Sketch::SketchBase< key_len, T >> & ptr_sketch )

finalvirtual

Get the size of the sketch.

You should override the Sketch::SketchBase::size() method.

Parameters

ptr_sketch pointer to the sketch

◆ testUpdate()

template<int32_t key_len, typename T >

void OmniSketch::Test::TestBase< key_len, T >::testUpdate	(	std::unique_ptr< Sketch::SketchBase< key_len, T >> &	ptr_sketch,
		typename std::vector< Data::Record< key_len >>::const_iterator	begin,
		typename std::vector< Data::Record< key_len >>::const_iterator	end,
		Data::CntMethod	cnt_method
	)

finalvirtual

Update a row of records (with values to the sketch)

Records in [begin, end) will be sequentially updated. You should override the Sketch::SketchBase::update() method.

Member Data Documentation

◆ config_file

template<int32_t key_len, typename T = int64_t>

const std::string_view OmniSketch::Test::TestBase< key_len, T >::config_file

protected

◆ show_name

template<int32_t key_len, typename T = int64_t>

const std::string_view OmniSketch::Test::TestBase< key_len, T >::show_name

protected

◆ test_path

template<int32_t key_len, typename T = int64_t>

const std::string_view OmniSketch::Test::TestBase< key_len, T >::test_path

protected
